Must have at least 18 gauge wire everywhere-(button to chime; transformer to chime; from chime to chime if wiring more than one), and must use a 16 volt transformer only.

Specifications

• Base Model Number: ICH1520
• Finish: Oiled Bronze
• Shipping Weight (lbs.): 6.51

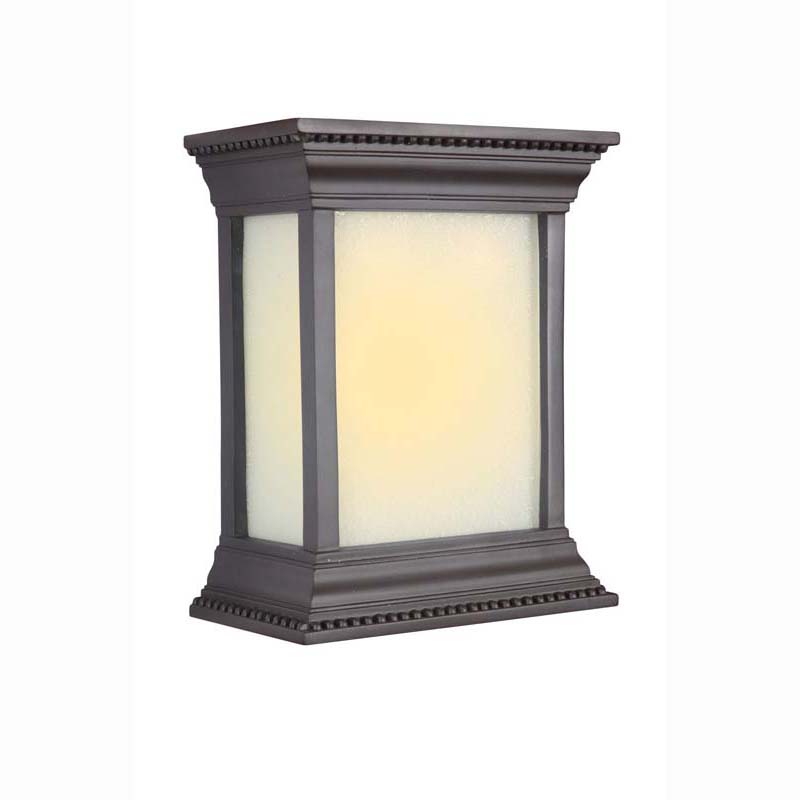

• Product Type: Lighted LED Chime
• Sound: 2 Notes on Front Door/1 Note on Second Door
• Voltage: 16V
• Chime Dimension: 10.875" H x 8.675" W x 5.0" D
• Hanging Position: Vertical
• Chime Recessed: No
• Pushbutton Light: LED
• Chime Transformer: 16 Volt
• Carton Size (CU FT): 0.66
• Shipping Length (in.): 11.02
• Shipping Width (in.): 7.48
• Shipping Height (in.): 13.86
• Bulb Base: LED
• Bulbs Included: Yes
• Material: Glass
• Energy Star: No
• Finish Code: OB
• Glass Shade Finish: White Linen

Dimensions

• Width (in.): 8.68
• Length (in.): 5
• Height (in.): 10.88
• Depth (in.): 5
